Tokyo, Japan, June 29th, 2023 – Nisshinbo Micro Devices Inc. has launched the R5668 series 1-cell Li-Ion battery protection IC, it does not stand out by only providing the essential standard battery protection features but also has incorporated additional safety measures and control functions. These enhanced features make it an ideal choice for applications that demand a higher level of safety and reliability.
Temperature sensor input:
The R5668 offers an additional input for connecting an external temperature sensor. This sensor measures the battery’s temperature periodically during charging and discharging. In case the battery temperature exceeds a critical threshold and a predefined delay time, the IC responds by turning off both the charge and discharge MOSFETs, ensuring the safety of the battery. During this event, the IC switches to continuous temperature measurement mode to closely track the temperature level. This feature enhances the safety and reliability of battery-powered applications, preventing overheating and potential damage. Parameters for the charging and discharging temperature detection, hysteresis, and delay times are specified in the product version options.
Forced Standby mode:

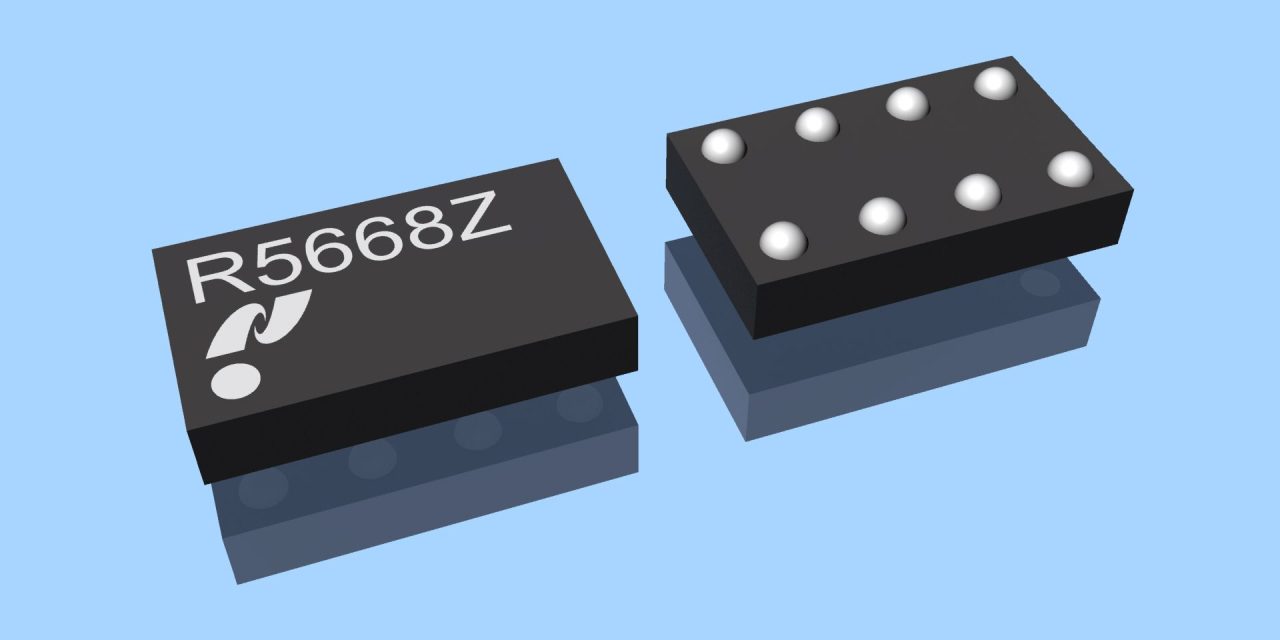

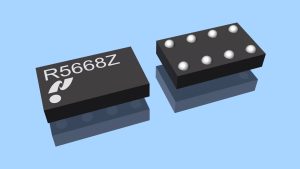

The R5668 includes a second additional feature known as the Forced Standby Mode. This mode can be manually activated by connecting the CTLIO pin to a specific voltage or logic level. When enabled, the IC enters a low-power state with minimal current consumption, effectively preventing further battery discharge. This feature is particularly useful when products are shipped or stored for extended periods, ensuring that the battery remains charged and ready for initial use. The forced standby mode is disabled when connecting the device to a charger. The R5668 comes in a small WLCSP-8-P14 (L1.55 x W0.92 x H0.36 mm) package, suitable for small-sized portable devices.
For more information, please visit https://www.nisshinbo-microdevices.co.jp/en/.
