Models with PCB slots, standard & RAL colours available

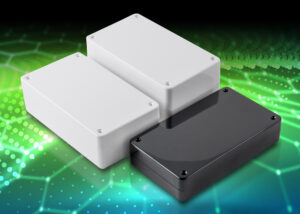

The BM Series of enclosures from British manufacturer BCL Enclosures are a versatile and attractive series of general-purpose enclosures that suit domestic and commercial electrical and electronic installations.
Manufactured in high-quality ABS for strength and durability, BM Series enclosure boxes have lids retained by four 3mm countersunk plated screws that fit into brass inserts in each corner. Three models are available: BM11 measures 143mm long x 82mm wide x 30mm high; BM12 measures 143mm long x 82mm wide x 44mm high; BM22 measures 143mm long x 82mm wise x 58mm high. Nominal wall thickness in all models is 30mm to provide structural rigidity. These standard sizes are all available in black or white, with an attractive polished finish. BM11W and BM11B have no PCB slots; BM12W and BM12B feature five slots on the long sides and three slots on the shorter sides of the base for secure retention of PCBs. For larger installations requiring more boards, BM22B and BM22W have the same number of PCB slots on both sides of the base as the BM12 models, plus a further five slots on the long side and three on the shorter side in the lid.
As with most of BCL’s other enclosure ranges, quotes for RAL colours or customisation by punching or drilling can be quickly obtained from BCL’s UK-based sales team.
About BCL Enclosures
BCL Enclosures is a UK manufacturer of standard and custom plastic enclosures moulded in ABS, polycarbonate and other plastic materials designed to provide functional and cost-effective solutions for a wide variety of applications across multiple markets. Unusual or challenging product housing requirements are a specialism as are fast turnaround and flexible order quantities from single boxes to high volume production. Founded in 1972, BCL Enclosures has sold over 25 million enclosures to date by providing expertise, excellent customer support and service from initial enquiry through to supply and beyond.
