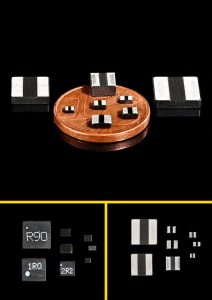

Ispringen, April 2024 – The new ICSIxxxxxxTxSHyST12 series from knitter-inductive expands the Rutronik portfolio of SMD power inductors. The series impresses with a wide inductance range and a high saturation current with an extremely small size. Further advantages are the special inner winding and the fully magnetically shielded design. The inductor series works reliably at operating temperatures from -40 °C to +125 °C and is suitable for use in a wide range of applications, e.g. for voltage regulator modules, DC/DC converters, embedded PCs, or switching power supplies. The inductors are available in tape & reel packaging for quick and cost-effective assembly at www.rutronik24.com.
Solid wire is used for the inner winding, which ensures a low DCR value from 2.0 mΩ and high current voltage. The inductor series is available with an inductance range from 0.10 μH to 10.0 μH and a saturation current range from 1.3 A to 35.0 A.
Most important features at a glance:
•Sizes between 1.6 mm x 0.8 mm x 0.8 mm and 6.6 mm x 6.4 mm x 3.1 mm
•Inductance range from 0.1 μH to 10 μH
•Saturation current from 1.3 A up to 35 A
•Tape&reel packaging
•Magnetically fully shielded
Application examples:
•DC/DC converter
•VRM (Voltage Regulator Module)
•SMPS (Switched-Mode Power Supply)
•Embedded PCs
