Patrick Faulkner, Lead Engineer at precision engineering component distributor Accu, discusses thermosetting and thermoplastic polymers and what makes them suitable for use in electronic applications.
“In electronics, choice of material plays a crucial role in determining performance, durability and reliability. Having an understanding of the chemical structures, performance characteristics and environmental considerations between thermosetting and thermoplastic polymers means that engineers can make informed decisions when selecting the most appropriate polymer for their electronic applications.
Chemical Structure & Bonding
There are important differences between thermosetting and thermoplastic polymers to consider. The main difference between them is their performance and reaction to the application of heat, this is due to chemical structure and bonding mechanisms. This determines their behaviour under various conditions and their suitability for different electronic applications.
Thermosetting Polymers Overview
Thermosetting polymers, also known as thermosets, are characterised by their irreversible chemical reactions during the curing process. When exposed to heat or specific chemical additives, these polymers form strong, three-dimensional cross-linked structures. This cross-linking occurs between polymer chains, creating a rigid network that cannot be melted or reshaped once formed. It is the cross-linking which gives thermosets their thermal stability, chemical resistance and mechanical strength. Common examples of thermosetting polymers include epoxy resins, phenolic resins and polyurethanes. These materials are widely used in electronic components that require high-temperature resistance and dimensional stability.
Thermoplastic Polymers Overview
In contrast, thermoplastic polymers have a linear or branched molecular structure without cross-linking. These polymers are held together by weak intermolecular forces, such as van der Waals forces or hydrogen bonding. As a result, thermoplastics can be repeatedly melted, reshaped and solidified without significant changes to their chemical structure.
This characteristic allows thermoplastics to be easily processed and recycled, making them suitable for various electronic applications. Examples of thermoplastic polymers include polyethylene, polypropylene and polyvinyl chloride (PVC). These materials are often used in electronic housings, cable insulation and 3D-printed prototypes.
Manufacturing
The manufacturing processes for thermosetting and thermoplastic polymers differ significantly, resulting in different performance characteristics, which significantly influence their suitability for various electronic applications.
The production of thermosetting plastics involves a two-stage process:
Firstly, a low molecular weight prepolymer is created through a controlled polymerisation reaction. This prepolymer is typically in a liquid or semi-solid state. Secondly, the prepolymer is subjected to heat, pressure or catalysts to initiate the cross-linking reaction. This process, known as curing, transforms the material into its final, irreversible solid state.
Common manufacturing techniques for thermosetting polymers include:
- Compression moulding
- Transfer moulding
- Injection moulding
- Resin transfer moulding (RTM)
These methods allow for the production of complex shapes and structures with excellent dimensional stability and surface finish.
Thermoplastic polymers on the other hand are typically produced through a single-stage process involving the polymerisation of monomers. Once the polymer is formed, it can be processed into various shapes and forms using different techniques such as:
- Injection moulding
- Extrusion (including 3D printing)
- Thermoforming
- Blow moulding
The ability to melt and reshape thermoplastics allows for more versatile manufacturing processes and easier recycling compared to thermosets.
Performance
Thermosetting polymers stand out for their ability to handle high temperatures without losing structural integrity. Instead of melting, they typically char or burn when exposed to extreme heat, making them an excellent choice for electronic devices or any applications that may encounter fire or indirect heat. Their cross-linked structure gives them impressive chemical resistance and ensures minimal expansion or contraction, which helps maintain consistent dimensions. This same structure also boosts their mechanical strength, and many thermosets offer top-notch electrical insulation.
Despite these advantages, thermosetting polymers do come with some downsides. They can be brittle, which makes them more likely to crack if they experience sudden stress or impact. The curing process can take time, and uncured resins usually have a short shelf life, demanding careful storage. Additionally, recycling fully cured thermosets can be difficult.
On the other hand, thermoplastics bring their own set of benefits. Because they can be melted and reshaped multiple times, they’re relatively straightforward to recycle. Their flexibility allows for quick moulding and faster production cycles, and you can even weld different thermoplastic components together. Generally speaking, thermoplastics are more budget-friendly to produce and process. However, they don’t resist heat as well as thermosets and can show more significant dimensional changes when temperatures shift. Under constant stress, thermoplastics may also experience creep or deformation, which can limit their use in certain engineering applications.
Applications in electronics for Thermosets
Thermosetting and thermoplastic polymers each possess distinct advantages that make them suitable for different electronic applications.

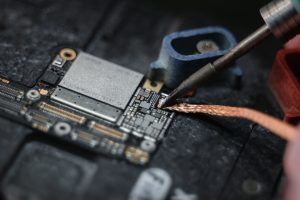

Thermosetting plastics excel in high-temperature environments due to their dimensional stability and strong electrical insulation properties. One prominent example is the use of epoxy resins in Printed Circuit Boards (PCBs), where they provide superior insulation. Thermosets are also essential for encapsulating electronic components, offering protection against moisture, chemicals and mechanical stress.
They are frequently chosen for high-performance high voltage connectors that must tolerate extreme temperatures and maintain dimensional consistency over time. In addition, thermosetting plastics are widely used to insulate and pot transformers and coils, ensuring reliable performance under intense heat and helping to extend their operational lifespan.
Applications in electronics for Thermoplastic Polymers
Thermoplastic polymers are valued for their versatility and cost-effectiveness in electronic applications. They are commonly used for cable insulation, where materials like PVC and polyethylene protect electrical wires. Thanks to their lightweight nature and ease of moulding, thermoplastics also work well for housings and casings in electronic devices. Their flexibility and impact resistance also make them popular for switches and user interface components. Lastly, some thermoplastics can be made conductive and used for EMI shielding in electronic devices.
Environmental considerations
As sustainability becomes increasingly important, thermoplastic polymers offer a clear advantage through easier recyclability. They can be melted and reshaped multiple times, which helps reduce waste and conserves resources. However, recycling thermoplastics in electronics poses certain challenges, such as contamination from metals or other additives, and potential degradation of properties after multiple cycles. There can also be inefficiencies in collection and sorting systems.
Recycling thermosetting polymers is more difficult because of their cross-linked structure. Traditional thermoplastic recycling methods are not suitable for thermosets, though ongoing research is exploring chemical recycling, mechanical recycling and using thermoset waste for fuel in energy recovery. Biodegradable and bio-based polymers are another emerging focus area, as researchers look for ways to reduce the overall environmental impact of polymer use.
Energy efficiency
Both thermosetting and thermoplastic polymers can be energy-intensive to produce. Current efforts aim to optimise curing processes for thermosets and develop lower-temperature processing techniques for thermoplastics. Other improvements include waste heat recovery systems and the use of renewable energy sources in manufacturing. These initiatives help lower energy consumption and make polymer production more sustainable.
Future trends & innovations
Polymer science researchers are driving innovations that enhance both the performance and sustainability of thermosetting and thermoplastic polymers. One example is the development of self-healing polymers, which can repair minor damage autonomously and extend the operational life of electronic components. Some polymers can change shape in response to external stimuli, creating new design possibilities in electronics. Nanoparticles and nanostructures are also being incorporated into polymers to further improve their properties.
Additive manufacturing

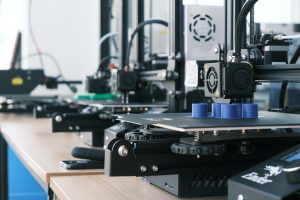

3D printing is transforming the production of polymer-based electronic components. The emergence of high-performance 3D-printable thermosets is particularly notable, as is the rising popularity of Stereolithography (SLA) printing for hobbyists as well as industrial multi-material 3D printing, which allows different polymers or materials to be combined in a single process. Electronic components are increasingly integrated directly into 3D-printed polymer structures, opening doors to more compact designs and efficient manufacturing. With the advancements made in Resin Printing, hobbyists and consumers are able to use photopolymer resins to manufacture parts with all the advantages of thermosets to solve problems more efficiently than ever before.
Conclusion
The use of thermosetting and thermoplastic polymers in electronic applications continues to be a critical aspect of modern technology. Each type of polymer offers unique advantages and challenges, making them suitable for different applications within the electronics industry.
Thermosetting plastics excel in high-temperature environments and provide excellent dimensional stability, while thermoplastic polymers offer versatility, recyclability and ease of processing.
The integration of smart materials, nanotechnology and additive manufacturing techniques promises to expand the capabilities of both thermosetting and thermoplastic polymers in electronic applications.
Ultimately, the future of thermosetting and thermoplastic polymers in electronics lies in striking a balance between performance, cost-effectiveness and environmental responsibility. By continuing to innovate and adapt, these versatile materials will undoubtedly play a vital role in shaping the next generation of electronic devices and technologies.”
