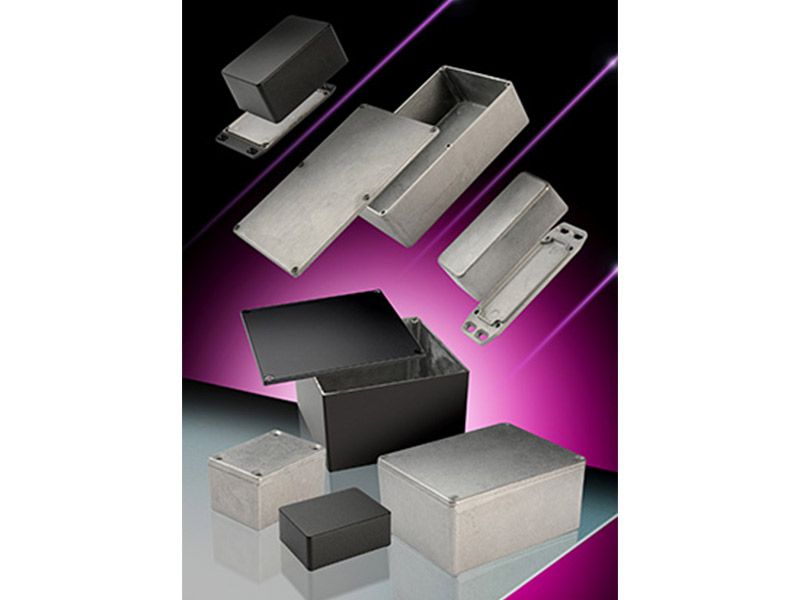

Our 1590 die-cast aluminium enclosure family is available in 37 rectangular sizes from 51mm x 51mm x 25mm to 254mm x 70mm x 50mm, finished in unpainted smooth aluminium or lightly textured black epoxy powder coat. All sizes are available with plain flat lids, selected sizes with flanged lids that provide security when the enclosure is mounted to a surface or flanged bases for when repeated access is required, are standard options. For installation in aggressive environments, pre-formed silicone gaskets and O ring screws increase the standard IP54 rating to IP65.
The 1590 has a low side wall draft angle to maximise the internal usable space for PCB mounting. The 1590-RIBBED variant, available in seven sizes from 50mm x 50mm x 31mm to 192mm x 112mm x 61mm, features 2mm wide PCB slots in all four sides for vertical PCB mounting.

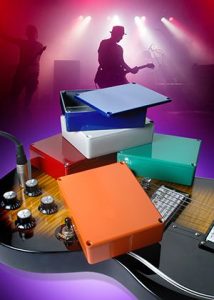

In nine selected sizes, standardised for manufacturers that use the 1590 as the enclosure for their stomp boxes for electric guitarists, a further seven vibrant colours are available as standard.
Key 1590 IP54/IP65 features
37 sizes, rated at IP54, from 51mm x 51mm x 25mm to 254mm x 70mm x 50mm with plain lids in natural or black epoxy powder coated finish- All sizes are available with an additional gasket and O ring sealed screws to achieve IP65 rating
- 31 sizes with flanged lids
- 32 sizes with flanged bases
- Nine sizes, the 1590 STOMP boxes are available in Cobalt Blue, Green, Light Grey, Orange, Purple, Red or Yellow polyester powder coat finish
- Seven sizes, the 1590-RIBBED Series are available with internal 2mm slots in all walls for vertical PCB mounting

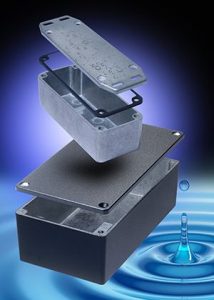

The 1590Z heavy duty units feature an average wall thickness of 4.7mm, giving an immensely strong enclosure suitable for installation in the most demanding environments where mechanical damage is a potential hazard. All 19 sizes are sealed to IP68. Four recessed self-capitivated stainless steel machine screws, located outside the sealed area, secure the lid into tapped holes in the base, making the units ideal for applications where repeated openings and closings are required to access the housed equipment. Optional 1.3mm galvanised steel inner panels are available for many sizes, allowing equipment to be mounted on a removable sub-assembly.
Key 1590Z IP68 features
23 sizes from 50mm x 45mm x 30mm to 400mm x 230mm x 180mm- Heavy-duty construction with an average wall thickness of 4.7mm
- Sealed to IP68
- Stainless steel securing screws
- Optional 1.3mm galvanised steel inner panels available for most sizes
- Most sizes have a mounting shelf in the base, enabling DIN rails or PCBs to be mounted directly into the unit without using stand-offs to provide clearance
- Easy to wall mount using through box – blind holes outside the sealed area
- Available with a natural finish or textured black or smooth grey powder coated finish inside and out
Our in-house modification services bring your project to market on time and on budget.
All standard enclosures will need to be configured to suit a specific application. We have many thousands of standard enclosures designs and sizes and we offer modifications for orders as low as 25 units. Using us, the original manufacturer, eliminates scrap and design interpretation of your requirements.
We offer
- Precision CNC Milling of holes, cut-outs, pockets, tapping and countersinking.
- UV digital and silk screen printing.
- Engraving of logos and text in both plastic and metal.
- Pressed in hardware – nuts, studs and standoffs.
- Custom moulding colours. All ABS, flame retardant ABS and polycarbonate enclosures can be moulded in any custom colour subject to a minimum order quantity.
- Custom painted colours – powder coating in either smooth or textured finish
Our distribution network
Hammond’s standard enclosures are available from our global network of international catalogue and specialist enclosure distribution partners. Many of our distributors also provide a local interface between their customers and Hammond for the design, configuration and manufacture of modified standards. Click here for the contact details of your most convenient European distribution partner.
Contact us
To contact our technical sales team about the enclosure requirements for your project, call +44 1256 812812, mail us at uksales@hammfg.com or eusales@hammfg.com. To help you in specifying your requirements you can download PDF, AutoCAD .dxf and 3D Solid Model .igs and .stp files for all our products from our web site.
