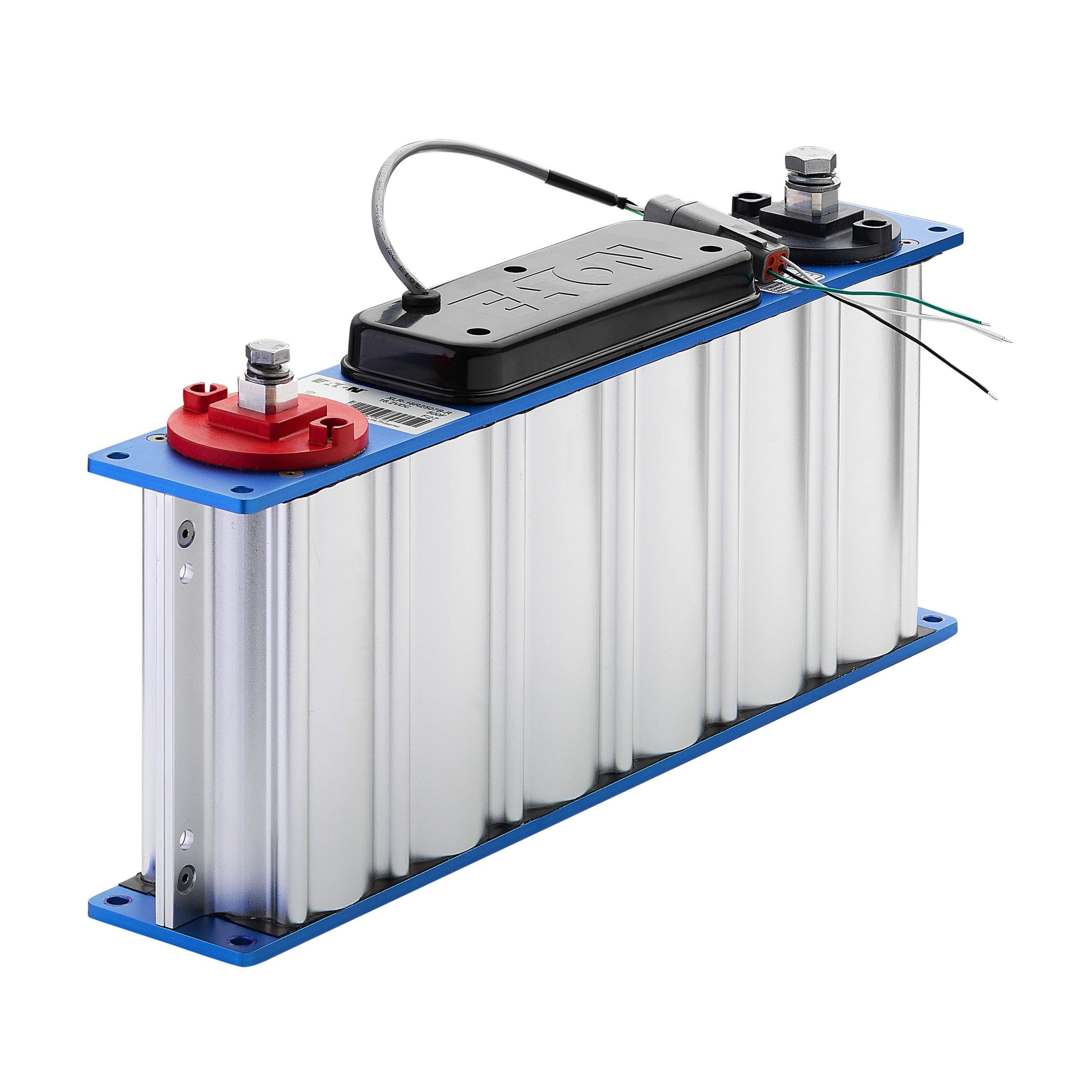

Ispringen, August 2023 – Improved reliability, higher voltage, and power: With the XLR-16R2507B-R (16 V/ 500 F) and XLR-18R0507B-R (18 V / 500 F) supercapacitor modules, EATON offers significantly optimized successor models for the previous XLR-16R2507-R series. Due to their low self-discharge and low leakage current, the modules also convince with a longer service life. Thanks to the IP65 housing and stable performance at operating temperatures between -40 °C and +85 °C, they are predestined for use in harsh environments. The supercapacitor modules, as well as other products from EATON, are available at www.rutronik24.com.
The supercapacitor modules can be used as a stand-alone energy storage device or in combination with batteries to optimize cost, lifetime, and uptime. System requirements can range from a few microwatts to megawatts.
In addition, they have extruded aluminum sidewalls, which can provide improved heat dissipation and mechanical stability. The laser-welded internal structure allows reduced overall weight and ensures that ESR remains stably low throughout the lifetime and power density does not decrease – even when the component is subjected to shock and vibration over an extended period.
Advantages at a glance:
• Capacitance of 500 F
• Maximum permissible operating voltage of 16 or 18 V
• Extruded aluminum sidewalls
• Laser-welded bus bars
• Low self-discharge
• Low leakage current
• IP65 housing
• Low cost of ownership and maintenance free
Examples of target applications:
• Automated Guided Vehicles (AGV), People Mover / Passenger Transport Systems PTS.
• Industrial Emergency Power Supply: PLC, Robotics, Automation
• Variable Frequency Drives (VFD)
• Engine starting: generators
• Transportation Systems
• H2 Fuel Cell Drives
• Traction Inverters
For more information about the Supercapacitor module by EATON and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.
