Hammond’s 1455 extruded aluminium enclosures now includes new square profiles that give much greater height for mounting multiple PCBs for distributed sub-systems and larger components.
Our product ranges constantly evolve and expand as we respond to the ever-changing requirements of the electronics industry. Our 1455 extruded aluminium family is the latest range to be extended, with two new profiles, 54mm x 54mm and 103mm x 103mm. The new square profiles give much greater height for mounting multiple PCBs for distributed sub-systems and/or larger electrical and electro-mechanical components. As standard, the 54mm x 54mm profile is available in 80mm and 120mm lengths, the larger 103mm x 103mm in lengths of 120mm, 160mm and 220mm. The new 103mm x 103mm size will house standard 100mm x 160mm or 220mm Eurocards.

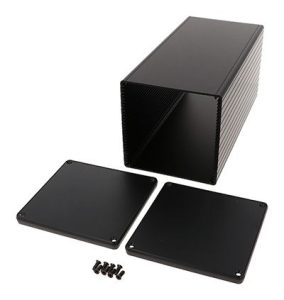

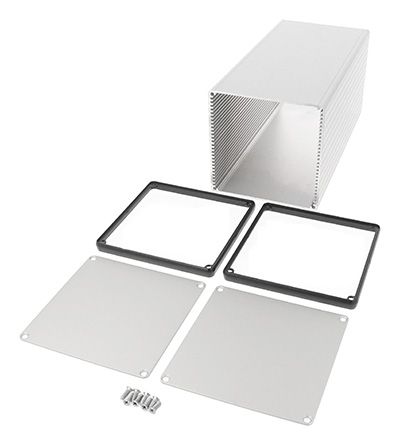

The new sizes are available in clear and black anodised finish with matching flat aluminium end panels, which are supplied with a separate plastic bezel, or with plastic end panels that have an integral bezel.
Key features of the new square 1455 sizes
- The new square sizes are the 1455CS, 54mm x 54mm, and the larger 1455NS, 103mm x 103mm
- The five new standard sizes are 54mm x 54mm x 80mm and 120mm long; 103mm x 103mm x 120mm, 160mm and 220mm long, available in clear and black anodised finish
- The larger 103mm x 103mm size accepts 100mm x 160mm or 220mm standard Eurocards
- They are available with colour-matched aluminium end panels with black plastic bezels or black plastic ones with integral bezels

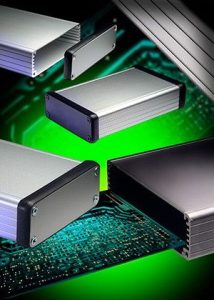

Key features of the rectangular 1455 family
- Available with or without a sliding plate for easier access to the inside of the enclosure
- 23 standard sizes from 80mm x 103mm x 31mm to 280mm x 191mm x 86mm with the sliding plate
- 15 standard sizes from 60mm x 45mm x 25mm to 120mm x 54mm x 23mm without the sliding plate
- Available in clear, black, blue and red anodised finish with matching aluminium end panels or black plastic ones with integral bezels
- Multiple slots in the extrusion for horizontally mounting PCBs
- Flanged end panels for direct mounting of the enclosure are available for selected sizes
To contact us to discuss a specific requirement, call +44 1256 812812, mail us at uksales@hammondmfg.com or eusales@hammondmfg.com or use Live Chat via our web site. To help you in specifying your requirements you can download PDF, AutoCAD .dxf and 3D Solid Model .igs and .stp files for all our products from our web site.
