Main article

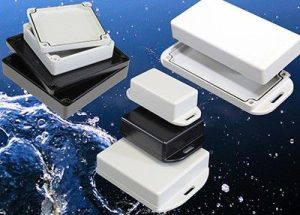

The latest extension to the very comprehensive 1551 family of miniature enclosures are the 1551W IP68 sealed units. All available with a plain or flanged lid, the UV-stabilised polycarbonate enclosures are suitable for use inside or outside. They are available in black and grey with a soft texture finish, all are fitted with PCB stand-offs in the base and the shaped silicone sealing gasket provides excellent protection against the ingress of dust or water, protecting the housed electronics.
The sealed IP68 1551W features
- Five sizes from 60 mm x 35 mm x 22 mm to 100 mm x 50 mm x 24 mm
- All sizes available with a plain or flanged lid
- Sealed to IP68 by a preformed silicone gasket
- Moulded from robust UL94 V-0 flame-retardant polycarbonate
- Suitable for outdoor or indoor use
- Available in black or grey
- Satin texture finish
- PCB stand-offs in the base
- Self-tapping screws secure the lid to the base
The general purpose 1551 family

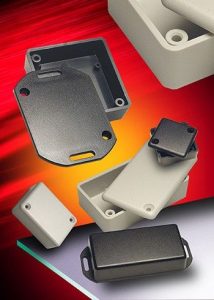

The general-purpose IP54 1551 family is available in 18 sizes, all with plain or flanged lids.
- 18 sizes from 35 mm x 35 mm x 15 mm to 100 mm x 40 mm x 20 mm
- All sizes available with a plain or flanged lid
- Three sizes available with a keyring fitting as standard
- Sealed to IP54 for general purpose use
- Moulded from ABS
- Plain lid versions available in black, grey or translucent blue
- Flanged lid versions available in black and grey
- Satin texture finish
- PCB stand-offs in the base
The specialist rectangular and round vented 1551V
The ventilated units are designed to house sensors and small sub-systems installed in the manufacturing environment. One of their key features is the snap-fit closure that allows repeated opening and closing without tools and also maximises the internal space for PCBs by eliminating screw fixings to secure the cover to the base. They feature ventilation slots on all four vertical faces of the cover and wall mounting slots and a 15mm cable knock out in the base.
Rectangular and round versions are also available with solid covers in all sizes.
- All versions are 20 mm high
- Three square sizes from 40 mm x 40 mm to 80 mm x 80 mm
- One rectangular size: 80 mm x 40 mm
- Three circular sizes: 45 mm, 60 mm and 80 mm in diameter
- All available in black, grey and white
- Slots in the base for easy wall-mounting
- Knock-out in the base for wire entry
- Moulded from ABS
- Snap fit assembly for tool-free access
- Satin texture finish
- PCB stand-offs in the base
The specialist 1551USB and 1551MINI
The 1551 USB comes in three sizes with a moulded-in aperture to accept a USB ‘A’ connector for plugging into a USB port. The 1551MINI follows the same sizes and colour options, but is without the USB aperture.
- All versions are 15 mm high
- Three sizes from 35 mm x 20 mm to 65 mm x 30 mm
- All available in black, grey, translucent clear, translucent smoke and translucent red
- Label recess in the top cover
- Moulded from ABS
- Satin texture finish
- PCB stand-offs in the base
Don’t forget our in-house modification services to bring your project to market on time and on budget
- Precision CNC Milling of holes, cut-outs, pockets, tapping and countersinking.
- UV digital and silk screen printing.
- Engraving of logos and text in both plastic and metal.
- Pressed in hardware: nuts, studs and standoffs.
- Custom moulding colours. All ABS, flame retardant ABS and polycarbonate enclosures can be moulded in any custom colour subject to a minimum order quantity.
- Custom painted colours – powder coating in either smooth or textured finish.
- Custom anodising colours for extruded enclosures subject to a minimum order quantity.
To contact us to discuss a specific requirement, call +44 1256 812812, mail us at uksales@hammondmfg.com or eusales@hammondmfg.com or use Live Chat via our web site. To help you in specifying your requirements you can download PDF, AutoCAD, .dxf and 3D Solid Model .igs and .stp files for all our products from our web site.
